V-SUPPORT FOR POLES
Frame material
Carbon steel with electrostatic coating
Frame color
White or Black
Weather Resistant
Yes
Poles Compatíveis
Story Permanent Pole
Quick Lock Permanent Pole
Possibility of installing more than 1 pole
No
Possibility of aerial anchoring
No
Set up Options
In a single (brick) wall
Use indication
Plaster ceiling Wooden ceiling PVC ceiling High ceilings Sites with only one brick wall available
Attachment point
4 screws, 2 on each side.
Supported weight
120kg / 264.55Lbs
Warranty
12 months

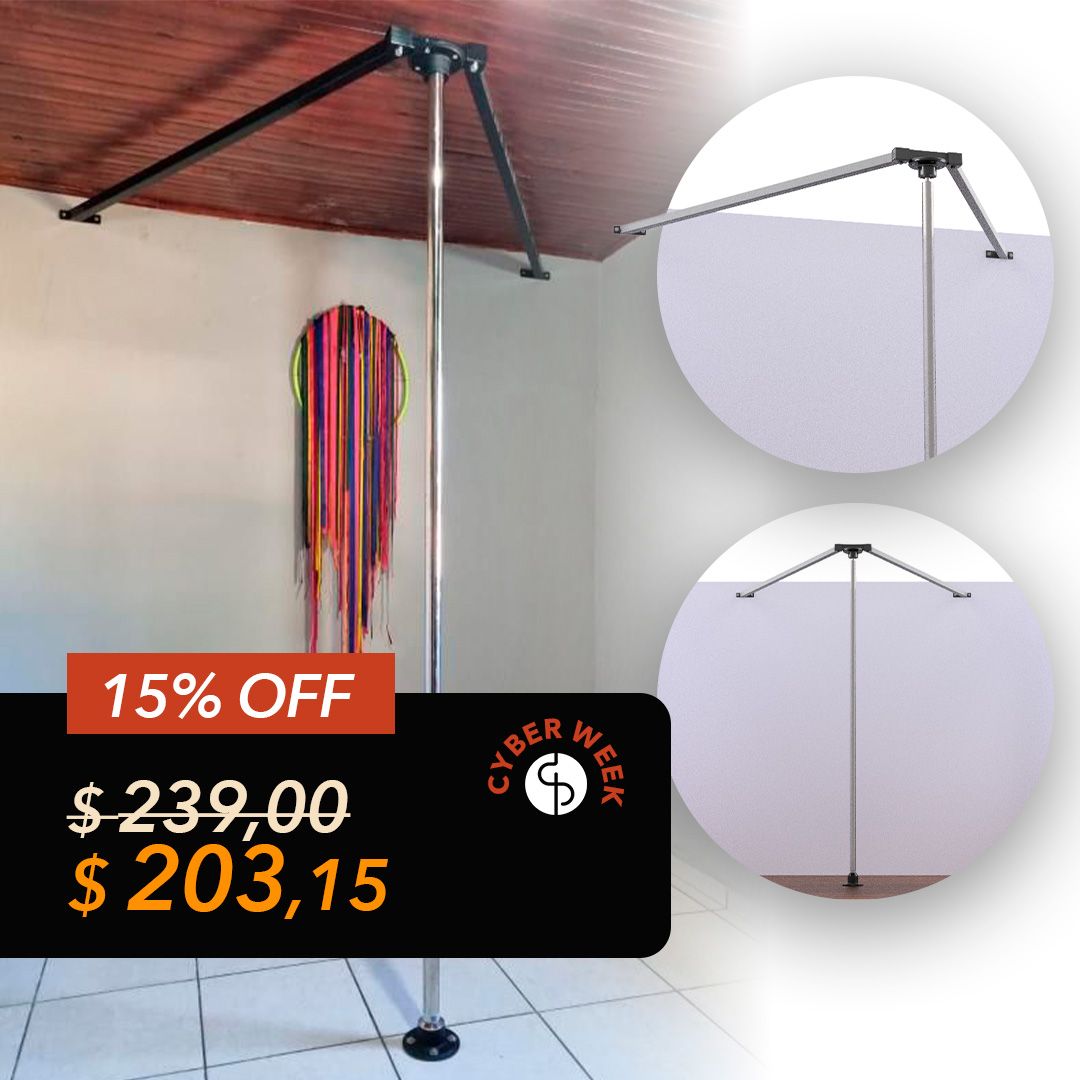

If you only have 1 brick wall available in your property and you want to install a pole safely, this is the perfect solution! That’s because this V-shaped structure is screwed to a single wall and then serves as a support for the setup of any model of Permanent Pole (screwed). Find out more about this structural solution suitable for studios or homes!
100% SAFETY
Once you’ve attached the V-Support to your wall, it’s very easy to install your pole: Just screw it to the top (on the support) and to the bottom, on the floor. That’s why you can only install the Gaia Pole Story Permanent or the Gaia Pole Quick Lock Permanent here. After that, your Gaia Pole will always be there, at your disposal for safe practice in both static and spinning mode. This model is perfect for studios or for those who live in their own home and have a reserved space for Pole!
QUALITY & BEAUTY
Made from square carbon steel tubing, the V-Bracket is finished in electrostatic paint, which gives it excellent resistance to corrosion and impacts. You can also choose between a white or black finish, depending on your preference.
2 SPINNING POLE OPTIONS
Choose between the Story Permanent and the Quick Lock Permanent. The difference between them is that in the Story line you switch between static and spinning by inserting/removing a pin. With Quick Lock, the process is done with just one click on the base. The bases of both are equipped with oversized, shielded bearings that are dust- and moisture-proof. This means a fluid spin that doesn’t get stuck in the middle of your performance! And if you already have your Gaia Pole Fixed model, just buy the support!
UNPARALLELED SHINE AND GRIP
Gaia Pole is a brazilian manufacturer that polishes poles in-house, following a strict quality protocol. Our tubes are Mirror Polished stainless steel, which provides extreme shine and unparalleled grip: whether it’s cold or hot! Furthermore, both at the base and throughout the tube, there are no screws or rivets exposed on your pole. In other words: no risk of cuts, bruises or snagged hair. No wonder the favorite and most popular pole in every studio is always Gaia!
WARRANTY
The V-Support comes with a 1-year guarantee against manufacturing defects.
The Gaia Pole Story Permanent and Gaia Pole Quick Lock Permanent come with a 2-year guarantee against manufacturing defects.
The pole bases are made of high-strength polymer and come with a lifetime guarantee.
Technical specifications
>>> V-SUPPORT
Setup:
- V-shaped structure measuring 1.5m × 2.0m / 4.92ft x 6.56ft ( tailor-made, please consult)
- Screwed to a single wall with 4 x 5/16X50mm screws and 10mm dowels
- Product weight: 10kg
Structure material:
- Structure made from square steel tubes, with a dimension of 40mm
3mm thick end fixing plates.
Warranty
- 1 year guarantee against manufacturing defects
Package contents:
- 1 V-frame
- 3 Parts that make up the main structure
- 4 Ø5/16” hexagonal screws with 10mm nylon bushing
- 4 ØM8 x 40mm hexagonal screws with nuts and washers.
>>> PERMANENT POLE
Setup:
- Screwed at the top (into the structure) and at the bottom (into the floor).
- Two-piece pole made to measure with a variation of up to 20mm.
- Product weight: Between 12 and 18kg / 26.45Lbs and 39.68Lbs – depending on height.
- Static and spinning:
-Quick Lock: Switch between Static and Spinning with just one click on the base.
-Story: Switch between Static and Spinning with a pin on the base.
-Both: Oversized bearings (your spin does NOT lock or stop during performance).
Pole Material:
- Choose from our 2 Finish options:
– Stainless Steel: Finished with Mirror Polished stainless steel –
which gives extreme shine and maximum grip.
– Rubber coating: Carbon steel tube coated with Nitrile rubber.
Grip: 44.45mm in diameter, regardless of finish.
Pole Base:
- High-strength polymer: won’t scratch or peel.
- Rubber-coated to prevent damage to ceilings and floors.
- The bases have screw holes, should the customer wish. All screws are recessed, with no risk of cutting.
- Shielded bearings: Dust and moisture proof, no lubrication required.
Package contents:
- 1 Permanent Pole (Story or QL, whichever you choose)
- 8 10mm nylon bushes
- 8 screws 5/16x50mm
Shipping and delivery:
- We ship worldwide!
You will receive your product with the Installation Manual and will receive assistance throughout the pre- and post-purchase period via our whatsapp channel. It is extremely important that you follow the instructions in the manual to ensure correct setup! Please request the setup video by whatsapp if you prefer this format to the written one.
Unrivaled Grip. Unmatched Spin. GAIA POLE
5.0
2 customer reviews
Treicyanne R.
Gaia's service was wonderful! The only problem was that I bought the poles in the October promotion where I would win power bands, but it didn't come. And we had some problems with the courier, but in the end I managed to receive them.
Bruna C.
From the beginning of service to the end, everyone I spoke to answered my questions promptly and with great cordiality. The bar I bought and the custom-made support came perfect, excellent material. I had a problem with the courier, but Gisele helped me and thank God everything worked out. I would definitely recommend Gaia Pole.
FAQ
The V-support fixed to just one wall, while the corner frame is fixed to two different walls (so it is always placed in a corner). Both allow the setup of poles that are only screwed down (to the floor) and up (to the structure).
No.
No.
No!!! You must measure the exact height between the floor and the ceiling of your property and let us know. Our engineers will do the rest!
