Frame material
Carbon steel with electrostatic coating
Frame color
White or Black
Weather Resistant
Yes
Poles Compatíveis
- Gaia Pole Quick Lock Removable
- Gaia Pole Quick Lock Portable
- Gaia Pole All In One Portable
Possibility of installing more than 1 pole
No
Possibility of aerial anchoring
Yes (wall-mounted)
No (slab)
Frame material
Carbon steel with electrostatic coating
Frame color
White or Black
Weather Resistant
Yes
Poles Compatíveis
- Gaia Pole Quick Lock Removable
- Gaia Pole Quick Lock Portable
- Gaia Pole All In One Portable
Possibility of installing more than 1 pole
No
Possibility of aerial anchoring
Yes (wall-mounted)
No (slab)
Set up Options
- Slab: Brick ceilings.
- Between Walls: Any environment with concrete walls.
Set up
Pressure mounted
(if you prefer, it can be screwed into ceiling/floor)
Use indication
- Slab: brick ceilings.
- Between Walls: Any environment with brick walls.
Attachment point
Between Walls: 14 screws, 7 holes each wall
From Slab: 6 screws into the ceiling
Supported weight
120kg (264.55 Lbs)
Warranty
12 months
Height range
3.937 inches (100mm) adjustment for more
Safety
Triple Lock
Transportable
No
Compatible with Carry-on Hard Case
No
Polishing
Mirror Polished stainless steel - Greater Grip
Finishing options
Stainless steel and rubber coated
Base material
High Strength Polymer
Rubber base
It won't damage floors and ceilings

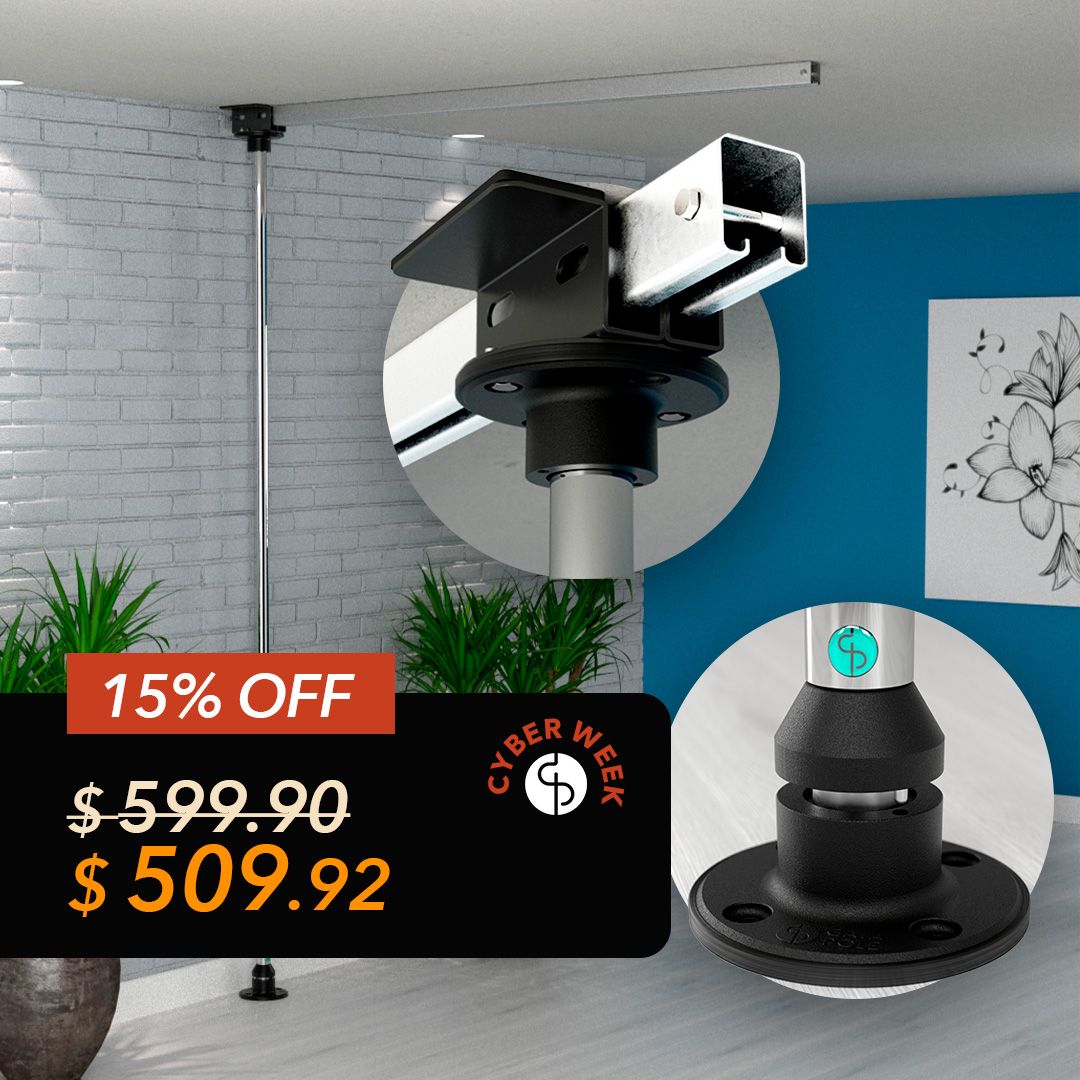

Slide your pole and lock it to the wall with this 100% exclusive solution from Gaia Pole! The Rail is installed directly on your slab, making it simple, quick and easy to free up space after training. Furthermore, this frame comes with the Quick Lock Removable Pole, installed by pressing from the bottom, with a Triple Safety Lock. In addition, it switches from static to spinning with just one click and, of course, It has the best Grip on the market. Find out more about this exclusive solution, perfect for studios or homes.
FREE UP SPACE EASILY
A solution developed by Gaia Pole, the Pole Rail Frame allows you to easily free up space after training or when you need to use the pole space for other activities. Best of all, you don’t even need stairs! This model is the perfect solution both for studios with multidisciplinary spaces and for those who want to free up space at home after use. This structure is also available on our website to be installed between walls, if you prefer!
QUICKNESS & CONVENIENCE

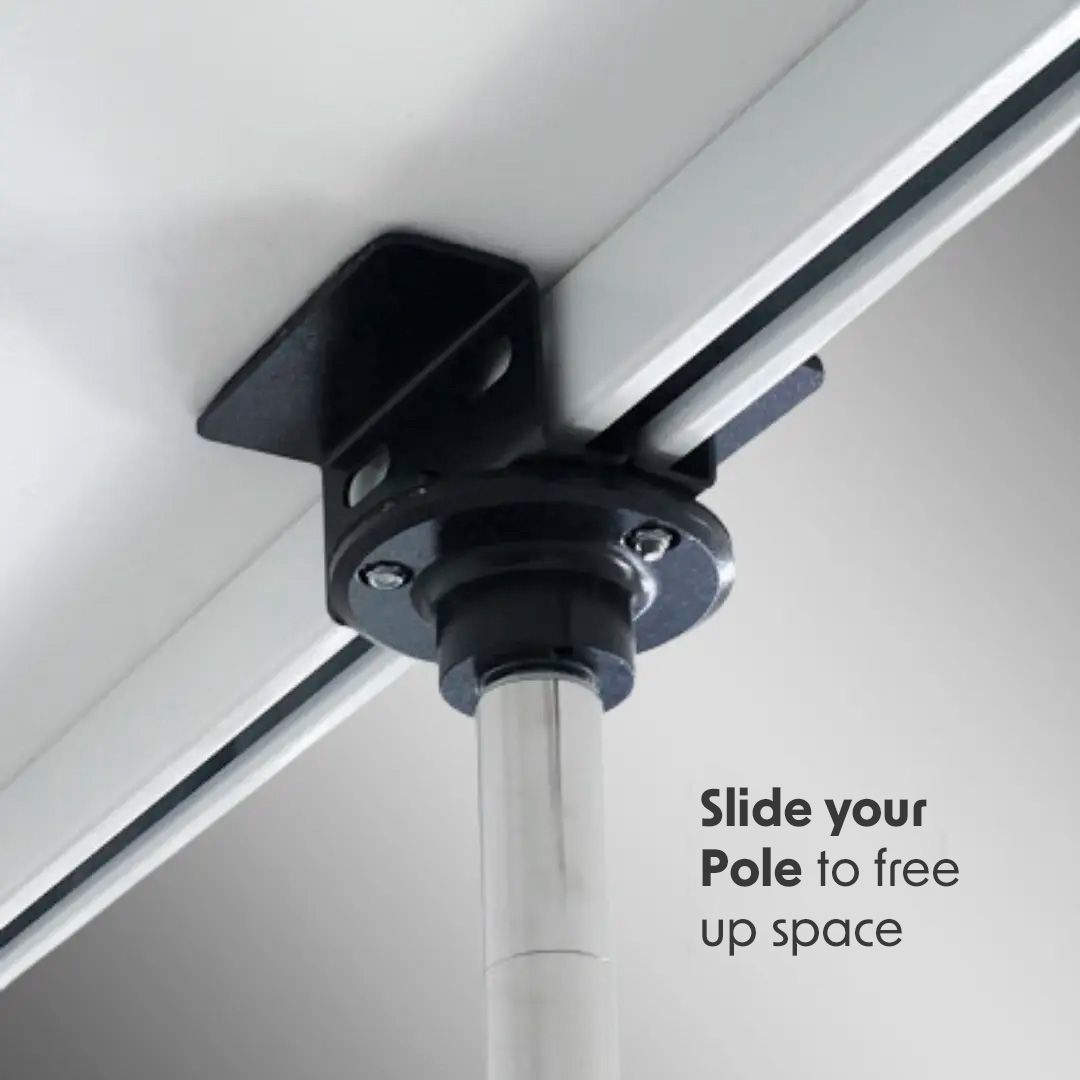

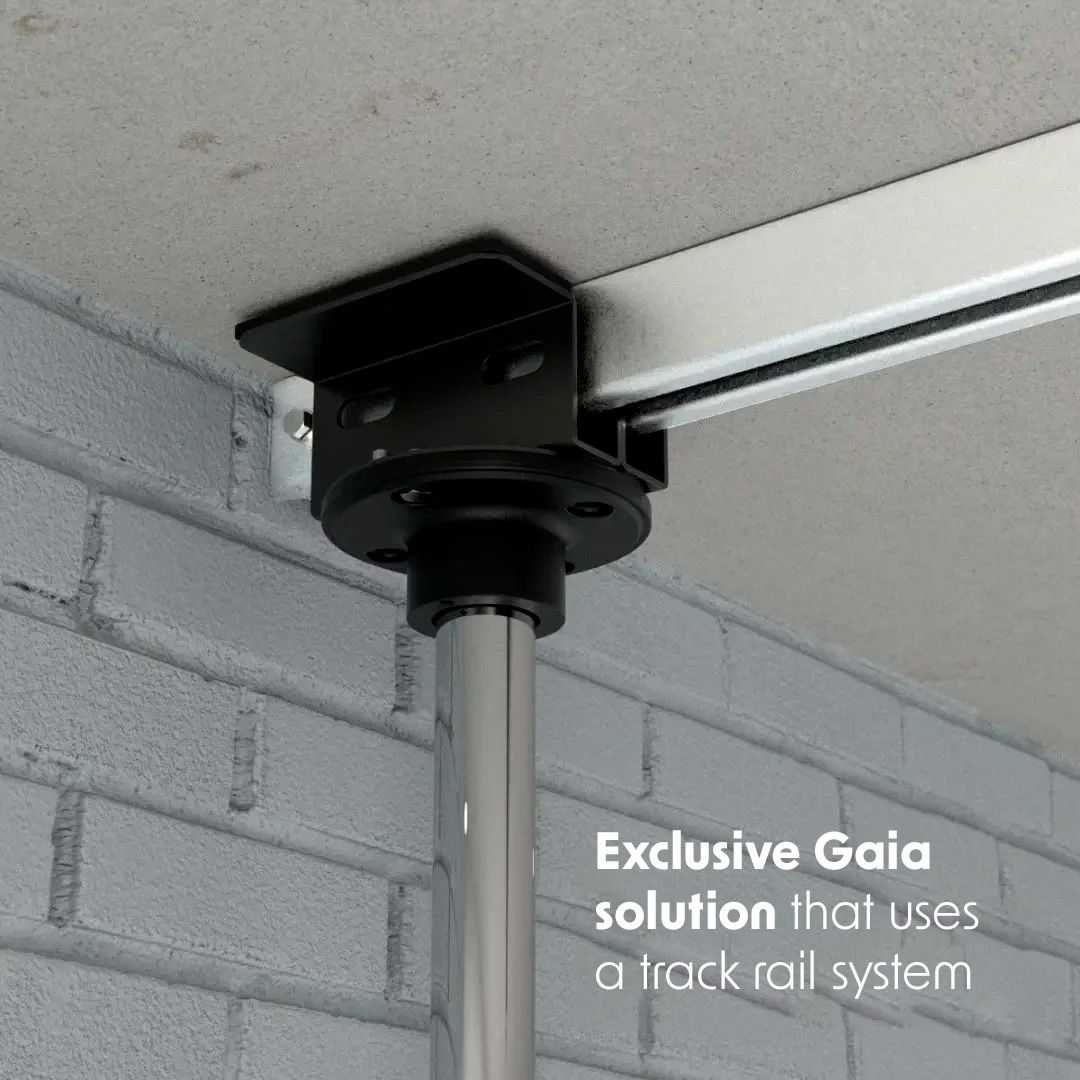

In our Exclusive Solution, a rail frame is installed directly on the ceiling (slab) and the pole slides along it. It can be “locked” into the wall/corner of the room. To do this, the pole is connected to the rail at the top via a trolley and installed by pressure at the bottom. Removing it after use is very simple: just remove the pressure and drag it away. That’s it, your space is free! That’s why this Structural Solution only accepts Gaia Pole models from the Quick Lock range.
GAIA POLE QUICK LOCK REMOVABLE
Tailor-made two-piece pole with 100mm installation range (for more).
STATIC AND SPINNING IN ONE CLICK
Switches between static and spinning modes with a simple click on the base, ensuring a fluid and versatile performance. Furthermore, the bases are equipped with shielded bearings, which are dust- and moisture-proof and require no lubrication. This means fluid rotation that doesn’t stop in the middle of your performance!
SAFETY IN EVERY DETAIL!
This Premium Equipment also has a Triple Safety Lock, which is an exclusive system developed by Gaia Pole. Only we take such care to ensure that there is no risk of the pole falling off during performance! Both at the base and along the entire tube, there are no screws or rivets exposed on your pole. In other words: no risk of cuts, bruises or snagged hair.
UNMATCHED SHINE AND GRIP
Gaia Pole is the only manufacturer in Brazil that carries out the polishing process in-house, following a strict quality protocol. Our poles have the exclusive Gecko Grip polish, which provides extreme shine and unparalleled grip: no matter what! No wonder the favorite and most popular pole in every studio is always Gaia Pole!
WARRANTY
The rail frame comes with a 1-year guarantee against manufacturing defects.
The pole comes with a 1-year guarantee against manufacturing defects.
The pole bases are made of high-strength polymer and come with a lifetime guarantee.
Technical specifications
Slab rail:
- 6.65ft (2.0m) long (consult for another measurement)
- Screwed to the ceiling with 6 screws
- Product weight: 3Kg (6.61Lbs)
Mobility:
- Rails: Makes it possible to slide the pole and lock it to the wall/corner of the room.
Warranty:
- 12 months against manufacturing defects.
Gaia Pole Quick Lock Removable:
- Setup: By pressure from the bottom (no ladder required).
- Triple safety lock system: doesn’t lose pressure during use.
- Custom-made two-piece pole – Possibility of buying an extension if you move to a space with a different height.
- Static and spinning: Quick Lock technology: Switch between Static and Spinning with just one click on the base.
- Oversized bearings: Your swivel will NOT lock or stop during performance.
Pole material:
- Stainless Steel: Mirror Polished stainless steel for a perfect grip
- Grip: 44.45mm in diameter, regardless of finish.
Base material:
- High-strength polymer: won’t scratch or peel.
- Rubber coating to prevent damage to ceilings and floors.
- The bases have screw holes, should the customer wish. All screws are recessed, with no risk of cutting.
- Shielded bearings: Dust and moisture proof, no lubrication required.
Shipping and delivery:
- We ship worldwide!
Warranty:
- Pole: 1 year against manufacturing defects. Possibility of purchasing an extended warranty of a further 12 months.
- Polymer Bases: Lifetime Warranty.
Product Weight:
- 26.45lbs – 39.68lb (12kg – 18kg)
Package contents:
- 1 Main Rail Frame
- 1 Handling trolley
- 14 5/16” Hex Bolts with Brick Bushing
- 1 Gaia Pole Removable Quick Lock
In addition to the digital installation manual, you can request assistance throughout the pre- and post-purchase period in our whatsapp channel. It’s extremely important that you follow the instructions in the manual to ensure correct installation!
